i.MixShower

Single components and spare parts

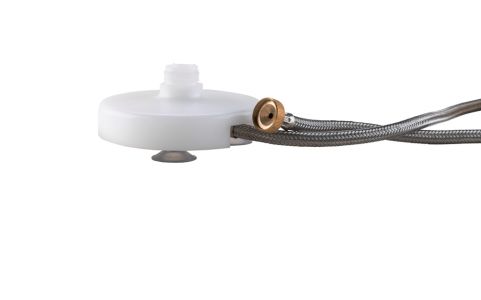

941 902

Base with hose and vacuums cups for i.MixShower- also suitable for conversion of 941 001 to 941 002 and 945 001 to 945 002 (120 x 120 x 50 - water connection M22x1)

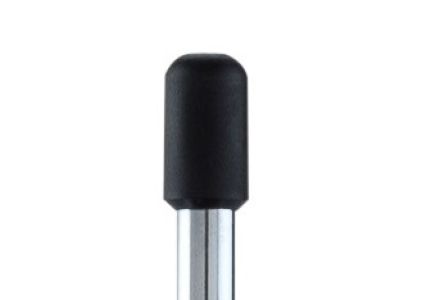

941 910

Protective sleeve for i.MixShower valve assembly 941 932

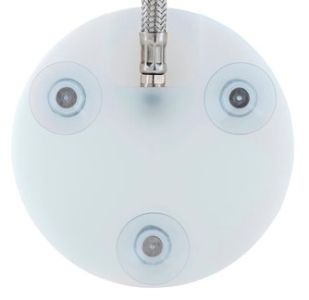

941 911

Vacuum cups for i.MixShower 941 002 and 945 002 (3 pcs.)

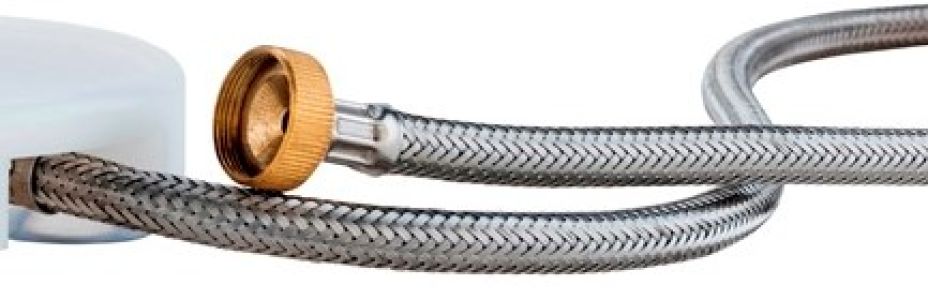

941 912

Hose for i.MixShower 941 002 and 945 002 (Water tap connection M22x1)


941 932

Valve assembly with clipped gaskets for i.MixShower all Models

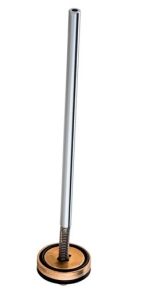

941 940

Stand pipe with integrated automatic water-stop and water-backf-lowpreventer for conversion of i.MixShower 941 002 to 941 001 / 941 003 and 945 002 to 945 001 / 945 020 / 945 024 / 945 027 / 945 029


920 986

Drain container round incl. 1“ drain connection (Measures LxWxH with border approx. 200 x 200 x 115 mm - without border approx. 150 x 150 x 110 mm)


920 987

Rinsing container round incl. hole for spray rinsing unit and for 1“ drain connection (Measures LxWxH with border approx. 200 x 200 x 115 mm - without border approx. 150 x 150 x 110 mm)


920 988

Rinsing container round incl. 1“ drain connection + strainer insert and hole for spray rinsing unit i.MixShower (Measures LxWxH with border approx. 200 x 200 x 115 mm - without border approx. 150 x 150 x 110 mm)


920 825

Angle holder for wall attachment for drain container round large 920 967 / 920 986 and rinsing container round large 920 987 / 920 988 (Measures LxWxH approx. 220 x 225 x 62 mm)


920 835

Cover plate for angle holder for wall attachment 920 825 (Measures LxWxH approx. 153 x 190 x 151 mm)


920 826

Angle holder for wall attachment for drain container round large 920 967 / 920 986 and rinsing container round large 920 987 / 920 988 (Measures LxWxH approx. 430 x 225 x 62 mm)


920 836

Cover plate for angle holder for wall attachment 920 826 (Measures LxWxH approx. 364 x 190 x 151 mm)


925 999

Drain insert for drain container round 920 967 / 920 986 and rinsing container round large 920 987 / 920 988 (Measures LxWxH approx. 148 x 148 x 10 mm)


925 901

Tap-off section for drain container round large 920 967 / 920 986 and rinsing container round large 920 987 / 920 988 (Diameter approx. 220 mm)


930 957

Water drain connection 1“ for rinsing container 920 908 and 920 991


930 958

Strainer insert water drain connection 1“ 930 957


930 992

Drain-kit 1" for spray rinsing devices for containers 945 020 / 945 024 / 945 027 / 945 029
Consisting of reducing socket, siphon and hose connector with nut


930 962

Water overflow pipe 1“ for water drain connection 1“ 930 957 (length approx . 95 mm)
