Infra-red heating assemblies

These units are designed generally for use in back-of-house applications where more heat and no light is required. The heat is provided by a stainless steel element and an energy regulator is used on the standard units to precisely control the output, emitting a very even heat over the length of the warming area.

Roband infra-red heating assembly HE1200-F
With infra-red element, anodized aluminium section, control box with energy regulator and mounting system


Thermal images of heat lamp assembly "HE900-F"



Thermal image depicting temperatures
in degrees Celsius when HE900-F lamp
positioned 300mm above surface.

Thermal image depicting temperatures
in degrees Celsius when HE900-F lamp
positioned 400mm above surface.

Thermal image depicting temperatures
in degrees Celsius when HE900F lamp
positioned 500mm above surface.



The lamp and heating assemblies are designed to delay the loss of heat from prepared food while waiting to be taken to the table. The thermal images below provide a guide as to heat projection when mounted at various heights. Note these units are not designed to bring food up to serving temperature.

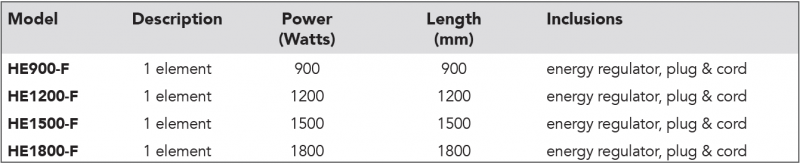

Specifications Standard Models Infra-red heat lamp assemblies - HE

220-240V 50-60Hz (CE).

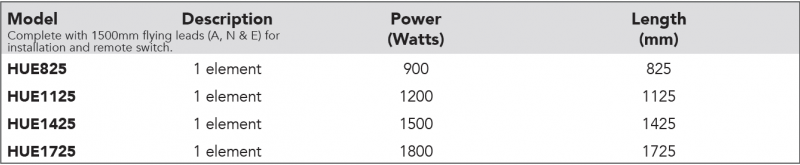

Specifications Fabricator Models Infra-red heat lamp assemblies - HUE

220-240V 50-60Hz (CE).


Models


Model lines
