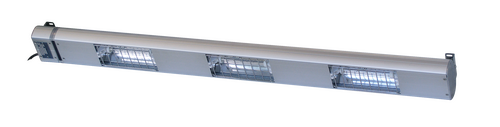

Fabricator models infra-red heating assemblies - HUE
HUE825
with 1500mm flying leads for installation and remote switch
Dimensions WxDxH (approx. mm)
Outer 825 x 108 x 65
1 Element
Power 900 W
Conncected wattage 220-240 V, 50-60 Hz, 16 A
HUE1125
with 1500mm flying leads for installation and remote switch
Dimensions WxDxH (approx. mm)
Outer 1125 x 108 x 65
1 Element
Power 1200 W
Conncected wattage 220-240 V, 50-60 Hz, 16 A
HUE1425
with 1500mm flying leads for installation and remote switch
Dimensions WxDxH (approx. mm)
Outer 1425 x 108 x 65
1 Element
Power 1500 W
Connected wattage 220-240 V, 50-60 Hz, 16 A
HUE1725
with 1500mm flying leads for installation and remote switch
Dimensions WxDxH (approx. mm)
Outer 1725 x 108 x 65
1 Element
Power 1800 W
Connected wattage 220-240 V, 50-60 Hz, 16 A

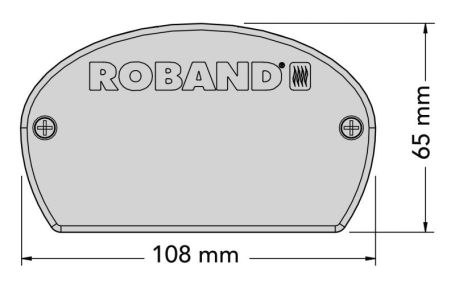

Dimensions
