i.SpatulaShower

Single components and spare parts

930 909P

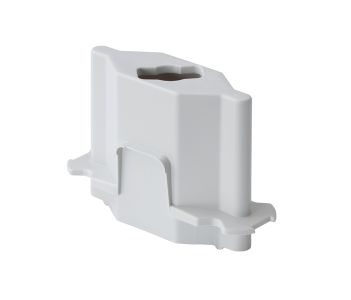

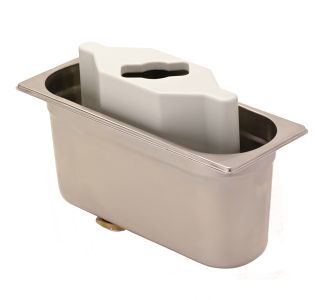

Plastic splash cover


931 909

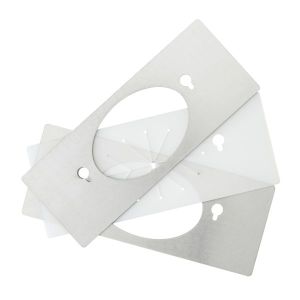

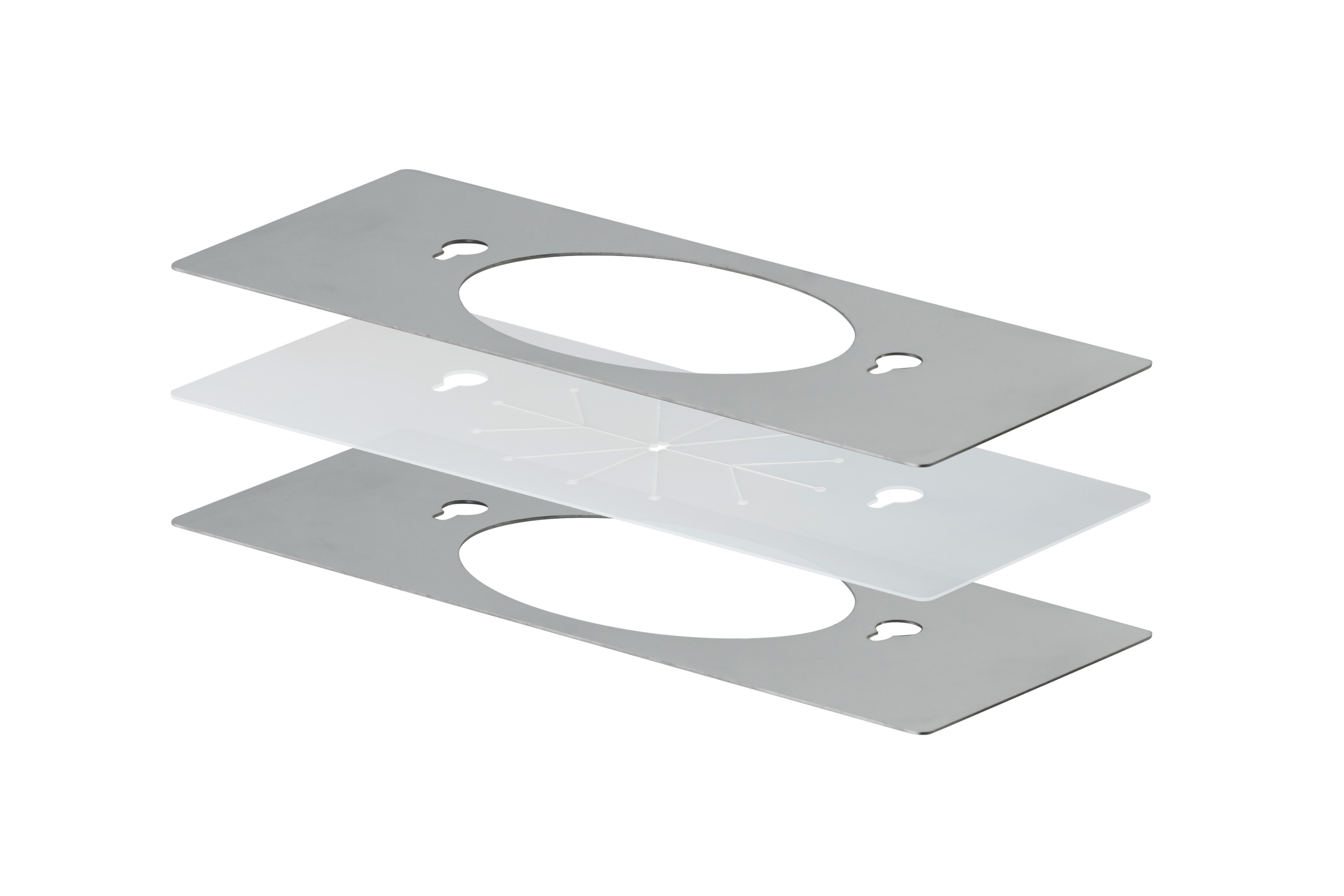

Sandwich splash cover


931 901

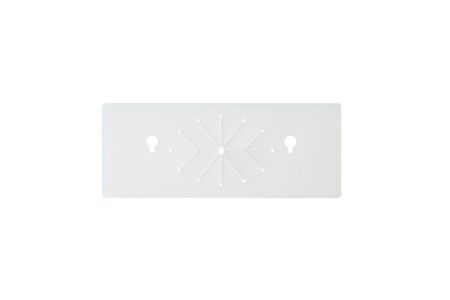

Silicone mat for sandwich splash cover 931 909


931 910

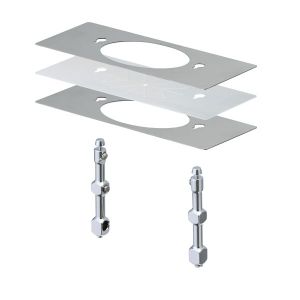

Retrofit-Kit sandwich splash cover

Consisting of 2x side arms with 2x full chat nozzles each and 1x sandwich splash splash cover for remodeling an existing i.SpatulaShower 930XXX to 931XXX


930 908

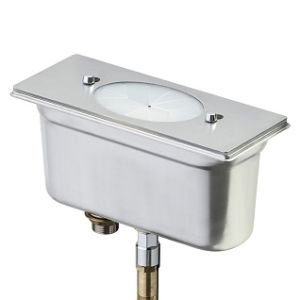

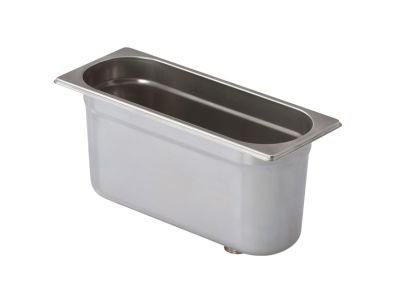

Rinsing container for i.SpatulaShower spray rinsing unit (Measures LxWxH with border approx. 325 x 132 x 150 – without border approx. 300 x 107 x 150)


930 903

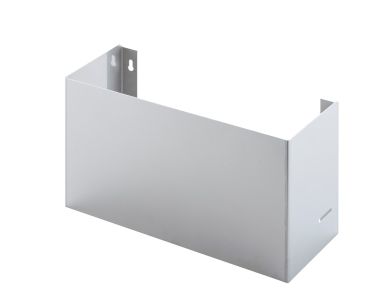

Holder for wall attachment for rinsing container 930 908 (Measures LxWxH approx. 310 x 124 x 185 mm)


930 966

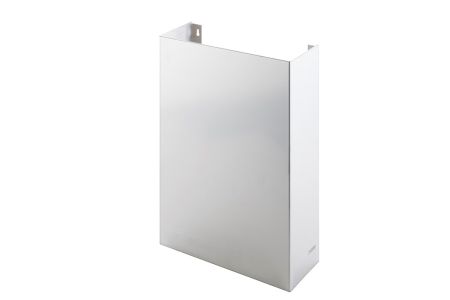

Holder for wall attachment for rinsing container 930 908 (Measures LxWxH approx. 310 x 124 x 480 mm)


920 802

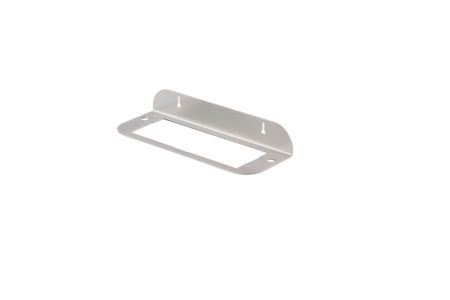

Angle holder for wall attachment for rinsing container 930 908 (Measures LxWxH  approx. 403 x 152 x 66 mm)


920 812

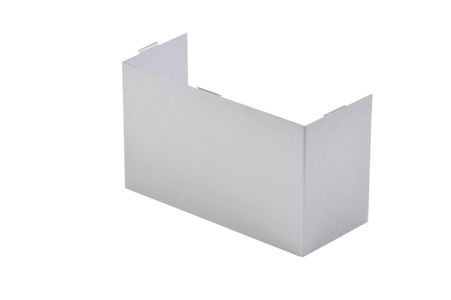

Cover plate for angle holder for wall attachment 920 802 (Measures LxWxH approx. 303 x 132 x 180 mm)


920 803

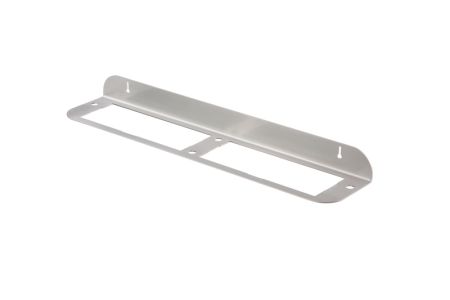

Angle holder for wall attachment for 2 x rinsing container 930 908 (Measures LxWxH approx. 756 x 152 x 66 mm)


920 813

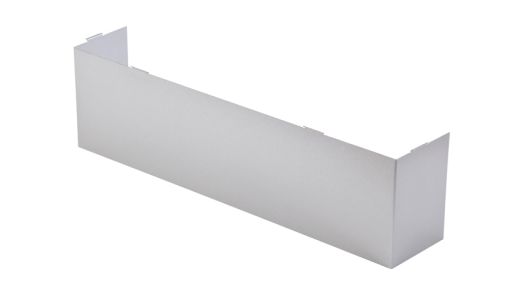

Cover plate for angle holder for wall attachment 920 803 (Measures LxWxH approx. 656 x 132 x 180 mm)


920 805

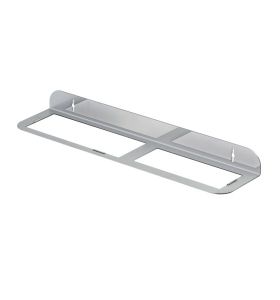

Angle holder for wall attachment for 1 x rinsing container 930 908 and 1 x drain container 910 908 (Measures LxWxH approx. 660 x 150 x 60 mm)


920 815

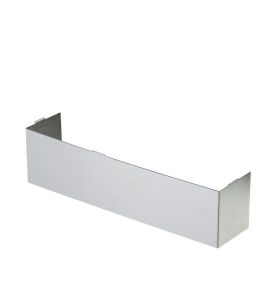

Cover plate for angle holder for wall attachment 920 805 (Measures LxWxH approx. 600 x 135 x 150 mm)


920 212

Water-tap (Water connection 3/8")


930 980PS

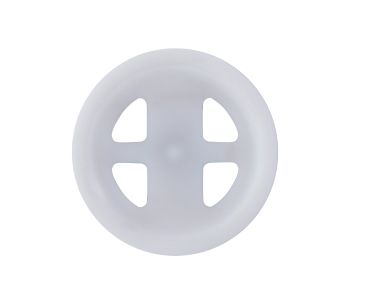

Activation disc


930 932PS

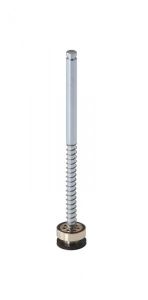

Valve assembly


930 981

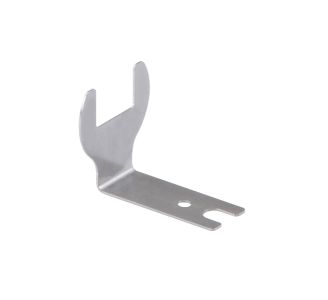

Mini spanner


930 957

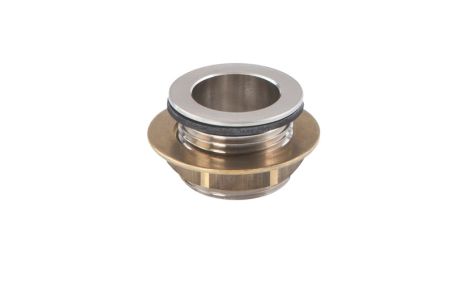

Water drain connection 1“ for rinsing containers 930 908


930 958

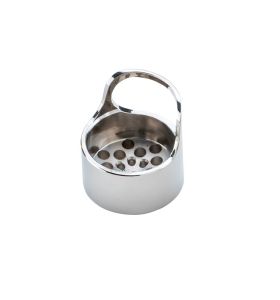

Strainer insert for water drain connection 1“ 930 957


930 976

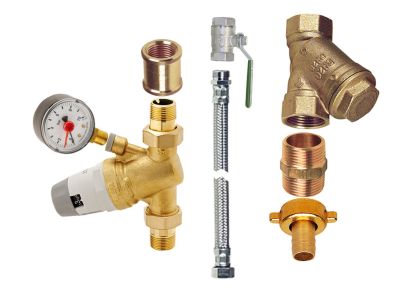

Installation-kit consisting of pressure reducer / manometer, ball-tap, hose for the water inlet
side as well as dirt trap with strainer, threaded fitting and hose fitting for the water drain side


930 992

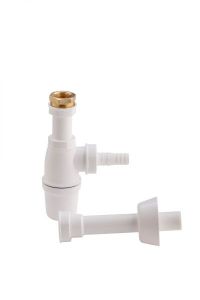

Drain-kit 1" for spray rinsing devices for ice-cream scoops 920 006 / 921 006 / 920 007 / 921 007 / 920 020 / 921 020 / 920 029 / 921 029 / 920 024 / 921 024 / 920 027 / 921 027 / 925 006 / 926 006 / 925 007 / 926 007 / 925 020 / 926 020 / 925 029 / 926 029 / 925 024 / 926 024 / 925 027 / 926 027 / 925 120 / 925 124 / 925 127 / 925 129 and for dryer devices for ice-cream scoops 950 020 / 950 029 / 950 024 / 951 027 and for spray rinsing devices for spatulas 930 002 / 930 003 / 930 008 / 930 009 and for spray rinsing devices for containers 945 020 / 945 024 / 945 027 / 945 029 and for scoop drain containers 920 967 / 920 998
Consisting of reducing socket, siphon and hose connector with nut


930 952

Fitting 3/4“x3/4“FTxFT


930 953

Ball-tap 3/4“x3/4“ FTxFT


930 950

Pressure reducer 3/4“x3/4“ MTxMT


930 951

Manometer for pressure reducer 910 950 and 930 950


930 954

Reinforced hose 3/4" x 3/4" MT/FT
